Pipes are essential components in a wide range of industries including oil and gas, chemical processing, construction, power generation and water supply systems. They are also important in delivering fluids, gases, and even solids in certain industrial purposes. Choosing the appropriate pipe type is essential for guaranteeing safety, performance and cost-effectiveness particularly when there are considerations like pressure resistance, strength, application requirements, and overall budget involved. This blog aims to provide a comprehensive comparison between seamless pipes and welded pipes, helping professionals and decision-makers choose the most suitable option for their operations.
What is a Seamless Pipe?
A seamless pipe is manufactured from a solid round steel billet that is heated and then pierced to create a hollow tube, followed by elongation through extrusion or rotary rolling. This process guarantees the pipe to be free from the welded joints, providing a uniform structure and continuous grain throughout its length. The lack of a seam increases its strength and reliability as seamless pipes are most suited for applications where safety and structural integrity are the priority, e.g., high-pressure or high-temperature conditions.

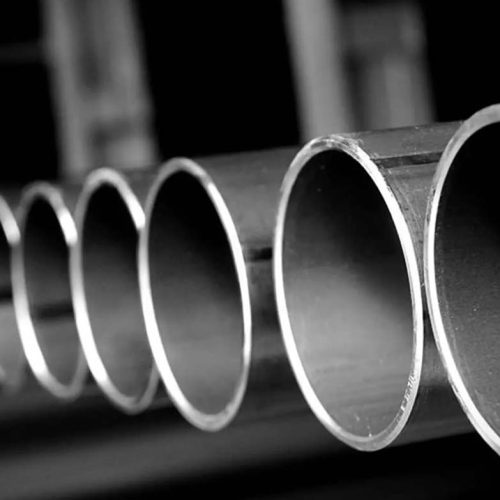

What is a Welded Pipe?
A welded pipe is produced by rolling a steel plate or coil into a cylindrical shape and then welding the seam along its length. Depending upon the intended application, different welding processes can be used such as Electric Resistance Welding (ERW), High-Frequency Induction Welding (HFIW), Longitudinal Submerged Arc Welding (LSAW), or Double Submerged Arc Welding (DSAW). After welding, these pipes usually receive post-weld heat treatment and surface finishing. Welded pipes are affordable, and are extensively applied in general purpose and structural purposes owing to their availability and cost-effectiveness.
Key Differences Between Seamless and Welded Pipes
- Production Process: Seamless pipes are produced by extrusion from a solid billet, whereas welded pipes are created by forming and welding steel plates or coils.
- Structural Characteristics: Seamless pipes are homogeneous with no stress points, whereas welded pipes possess a distinct weld joint which may be a possible point of stress.
- Surface Finish: Welded pipes tend to have a superior and more uniform outer surface finish due to surface finishing operations after welding.
- Size Range: Welded pipes can be produced in greater diameters, hence more suitable for high-flow volume applications.
- Cost: Seamless pipes are typically more expensive due to complex manufacturing and limited production output. Welded pipes are more economical due to mass production and lower fabrication costs.
- Testing: Welded pipes are tested specifically at the weld seam using Non-Destructive Testing (NDT) techniques while seamless pipes undergo full-body inspection to detect internal and surface flaws.
Seamless Pipe vs Welded Pipe: Strength Comparison
Seamless Pipe Strength:
Seamless pipes are more appropriate for pressure and temperature applications like boilers and pressure vessels because they have a uniform grain structure that enhances both tensile and yield strength. The other benefit is that there is no weld seam, eliminating weak spots and stress concentration points, ensuring maximum reliability and durability under severe conditions.
Welded Pipe Strength:
Welded pipes can have a little less strength at the weld joint, but the improvements in welding methods and post-weld treatments have improved the integrity and performance of the seam immensely. These pipes are suitable for applications involving moderate internal pressure and less critical performance requirements, offering a cost-effective solution without compromising on quality for standard industrial uses.
Conclusion on Strength:
Seamless pipes are the choice in applications where strength and reliability are a must, guaranteeing maximum performance under tough conditions. Welded pipes, on the other hand, are sufficient and reliable for non-critical and cost-conscious projects, as long as they are produced in accordance with proper standards and quality controls.
Cost Comparison
Seamless pipes are in general more costly because they are made using premium billets, intricate forming methods, and greater production time and therefore are more suited for critical and high-pressure systems.
Meanwhile, welded pipes are more affordable and have a shorter lead time which makes them a practical choice for large-scale or infrastructure projects.
Ultimately, cost choices must be based on performance needs—use seamless pipes when strength and reliability are the priority and welded pipes for normal, less stringent uses.
Performance & Durability
Seamless pipes provide greater corrosion and fatigue resistance, particularly in harsh environments, since they have no weld zone that might weaken under stress or corrosive exposure.
Welded pipes, although slightly less resistant in extreme conditions, are extremely durable for normal applications, with the latest welding processes ensuring reliable long-term performance when stress, corrosion and temperature remain within controlled limits.
When deciding between the two, it’s essential to consider factors such type of fluid or gas being moved, external environmental conditions, and the system operating pressure.
Applications and Suitability
Seamless pipes are widely employed in high-temperature and high-pressure applications like oil and gas exploration, petrochemical plants, boilers, heat exchangers, and pressure vessels owing to their higher strength and reliability.
In contrast, welded pipes are widely utilized in structural and mechanical applications, water pipelines, infrastructure projects, and general-purpose industrial setups where conditions are less demanding.
The final selection between seamless and welded pipes depends on factors such as the required pressure rating, adherence to regulatory standards, the criticality of the application, and the overall project budget.
Pros and Cons Summary
Seamless Pipes:
Seamless pipes offer the benefit of equal strength across the pipe because there is no weld, and thus, they are extremely reliable for high-end applications. They are suitable for high-temperature and high-pressure conditions, e.g., oil & gas and power plants.
However, seamless pipes come with higher manufacturing costs, driven by the use of quality raw materials and more complex production processes. Additionally, they are typically limited to smaller diameters, which can restrict their use in large-scale infrastructure projects.
Welded Pipes:
Welded pipes are a cost-effective option, making them ideal for budget-conscious projects and widespread industrial use. They come in bigger diameters, making them ideal for use in applications such as water transport and structural frameworks. Another benefit is that they have improved dimensional accuracy, making them easier to install and ensuring consistency in performance.
On the negative side, welded pipes can contain potential weaknesses at the weld seam, which can be a concern in high-stress or corrosive environments unless proper manufacturing standards are strictly followed.
Conclusion
In summary, seamless or welded pipes are chosen based on requirements such as strength, price, size, and application requirements. Seamless pipes provide improved strength and dependability, which makes them appropriate for critical and high-pressure conditions. Welded pipes, however, are cost-effective, have large sizes and are appropriate for general applications with normal pressure. For optimal performance and value, choose the pipe type that best meets your project’s technical specifications, safety standards, and budget considerations.
